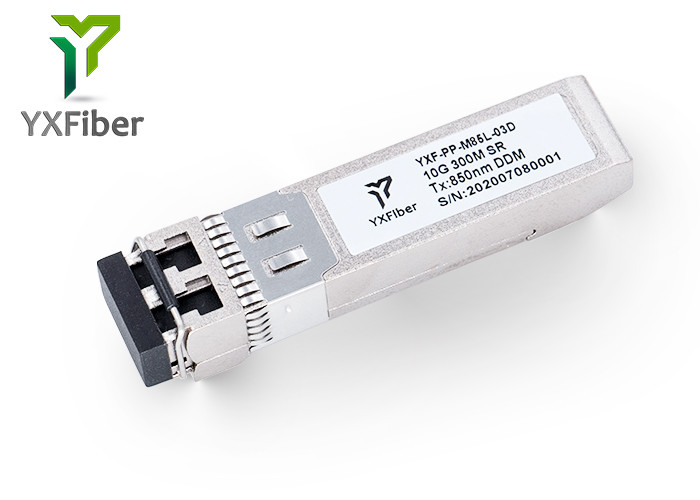

Duplex LC Connector 300m 850nm 10G SFP+ Module

Name: Duplex LC Connector 300m 850nm 10G SFP Module
Brand: YXFiber
Price: 9.50 USD

Buy cheap Duplex LC Connector 300m 850nm 10G SFP+ Module product

Place of Origin : Hubei, China

Brand Name : YXFiber

Model Number : YXF-PP-M85L-03D

Certification : CE RoHS FCC

MOQ : 1pcs

Price : $9.50

Packaging Details : 10pcs in Plastic tray

Delivery Time : 1~3working days after payment

Payment Terms : T/T

Supply Ability : 100000pcs per month

Type : Fiber Optic Transceivers

No. of Fiber : 2.

Use : FTTX

Supply Voltage : 3.3V

Power : 1~-6dBm

Data rate : 10G

Wavelength : 850nm

Transmission distance : 300m

Interface : Duplex LC

Fiber Type : SFP+

DDMI : Yes

Warranty : 1 Year

Selling Units : Single item

Single package size : 22X5X6 cm

Single gross weight : 0.050 kg

Package Type : 10pcs/ anti-static box.

Contact Now

10G Duplex 300m 850nm LC Connector SFP Module

Features

l Up to 300m transmission on MMF
l Up to 10.3125Gbps
l 850nm VCSEL laser and PIN receiver
l SFI electrical interface
l 2-wire interface for integrated Digital Diagnostic monitoring
l SFP+ MSA package with duplex LC connector
l Hot pluggable
l Very low EMI and excellent ESD protection
l +3.3V power supply
l Power consumption less than 1.0W
l Operating case temperature: 0~+70°C

Applications

l High-speed storage area networks
l Computer cluster cross-connect
l Custom high-speed data pipes

Compliance

l Compliant with IEEE 802.3ae-2002
l Compliant with MSA SFF-8472
l Compliant with MSA SFF-8431

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit	Notes
Storage Temperature	T_S	-40	+85	℃
Supply Voltage	V_CC3	0	3.6	V
Relative Humidity	RH	5	+85	%	Note1
Rx Input Average Power	Pmax	-	+1.5	dBm

Technical Parameters	Descriptions
Model Number	YXF-PP-M85L-03D
Fiber type	MMF
Form Factor	Dual SFP+
Data Rate	10Gbps
Wavelength	850nm
Distance	300m
Sensitivity	<-14.0dBm
Connector	LC
Laser/Detector	VCSEL/PIN
DDM	Yes
Output Power	1~-6
Power Supply	3.3
Temperature	0~70
Certificate	CE,NOA,ROHS,ISO,FCC,SGS
Warranty	1 Year

Applications

Duplex LC Connector 300m 850nm 10G SFP+ Module

Our Advantages

Duplex LC Connector 300m 850nm 10G SFP+ Module

850nm 10G SFP+ Module

300m 10G SFP+ Module

Duplex 10 gigabit SFP+

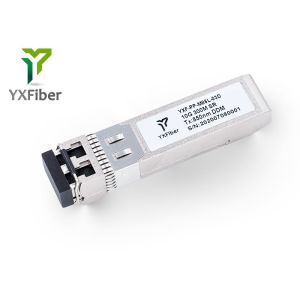

Duplex LC Connector 300m 850nm 10G SFP+ Module Images
