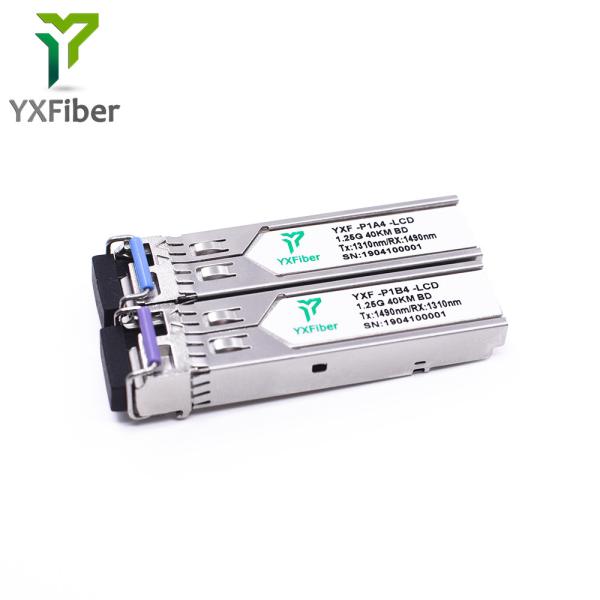

SMF 40km 1310nm/1490nm BIDI 1.25G SFP Optical Module

Name: SMF 40km 1310nm1490nm BIDI 125G SFP Optical Module
Brand: YXFiber
Price: 12.00 USD

Buy cheap SMF 40km 1310nm/1490nm BIDI 1.25G SFP Optical Module product

Place of Origin : Hubei, China

Brand Name : YXFiber

Model Number : YXF-P1A4-LCD/YXF-P1B4-LCD

Certification : CE RoHS FCC

MOQ : 1pcs

Price : $12.00

Packaging Details : 10pcs in Plastic tray

Delivery Time : 1~3working days after payment

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Type : Fiber Optic Transceivers

No. of Fiber : 1.

Use : FTTX

Supply Voltage : 3.3V

Data rate : 1.25G

Power : 0~-5dBm

Wavelength : 1310nm/1490nm

Transmission distance : 40km

Interface : BIDI LC

Fiber Type : SMF

DDMI : yes

Warranty : 1 year

Selling Units : Single item

Single package size : 22X5X6 cm

Single gross weight : 0.060 kg

Package Type : 10pcs/ anti-static box

Contact Now

1.25G BIDI 40km 1310nm/1490nm LC Connector SFP Module

l Up to 40km transmission on SMF

l Up to 1.25Gbps

l 1310nm DFB laser and PIN receiver

l Single LC/SC receptacle optical interface compliant

l 2-wire interface for integrated Digital Diagnostic monitoring

l Hot pluggable

l Very low EMI and excellent ESD protection

l +3.3V power supply

l Power consumption less than 1.0W

l Operating case temperature: 0~+70°C

Specification

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit	Notes
Storage Temperature	T_S	-40	+85	℃
Supply Voltage	V_CC3	0	3.6	V
Relative Humidity	RH	5	+85	%	Note1
Rx Input Average Power	Pmax	-	+1	dBm

SMF 40km 1310nm/1490nm BIDI 1.25G SFP Optical Module

Applications

SMF 40km 1310nm/1490nm BIDI 1.25G SFP Optical Module

Production Flow

SMF 40km 1310nm/1490nm BIDI 1.25G SFP Optical Module

Packaging & Shipping

SMF 40km 1310nm/1490nm BIDI 1.25G SFP Optical Module
